ELECTRIC COUNTERBALANCE PLATFORM
CPD35

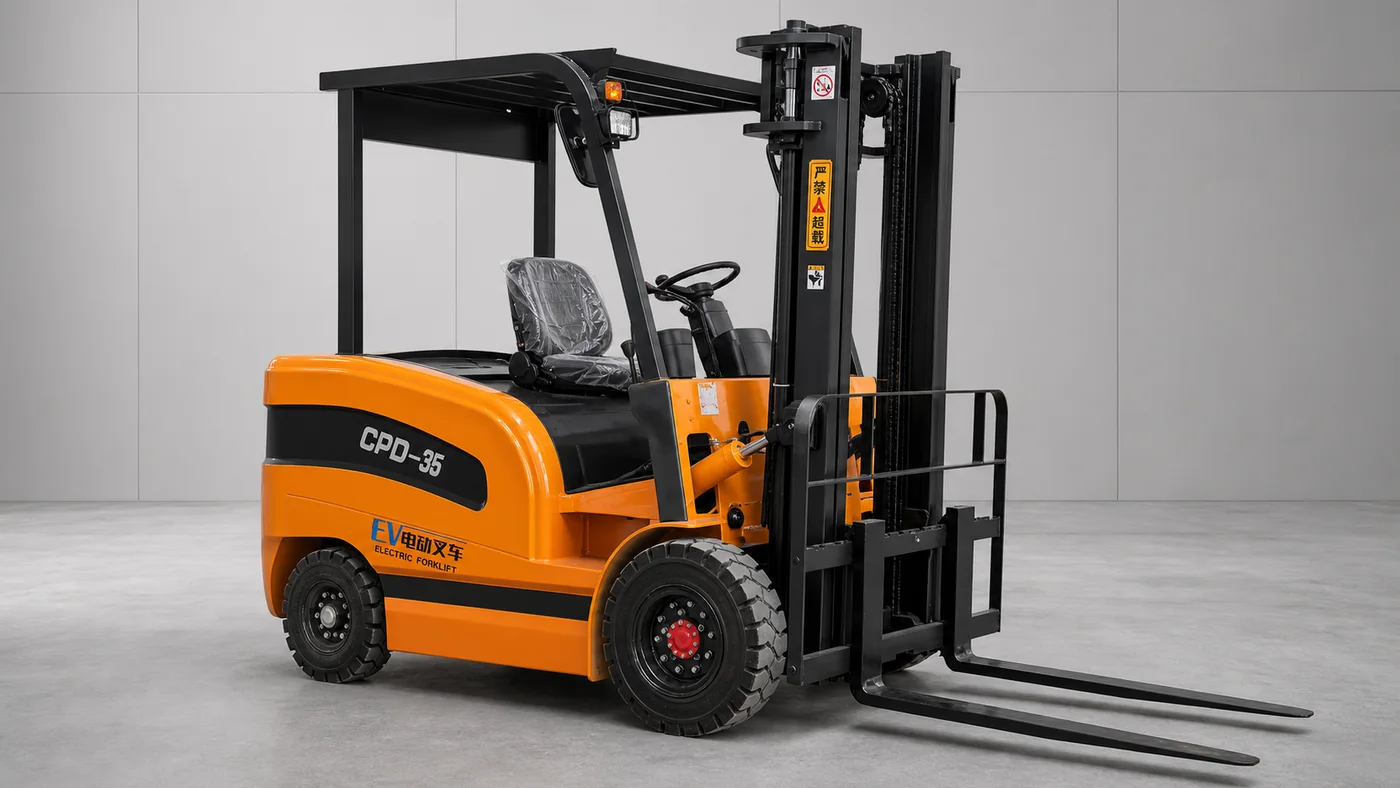

3.5T3.5T electric forklift, configured around the job.
A higher-capacity electric forklift suited to demanding factory, yard and attachment-based work.
3,500 kg rated3,000 mm standardREAL PRODUCT IMAGESunYi factory material
- 01 / Rated load
- 3,500 kg
- 02 / Service weight
- 4,780 kg
- 03 / Standard lift
- 3,000 mm
- 04 / Truck length
- 2,840 mm
- 05 / Fork size
- 1,070 × 130 × 50 mm
FIRST-STAGE FIT
Where CPD35 starts to make sense.
- Standard forks
- High mast
- Attachments
- Load centre and dimensions
- Residual capacity at lift height
- Attachment weight and hydraulics
- Worksite, aisle and charging access
CONFIGURATION PATHS
Choose the direction. Then verify the engineering.
Battery
Lithium or lead-acidChoose around working hours, charging access, maintenance preference and budget.
Mast
3m standard · 4.5/5.5/6m regularAbove 6m up to 10m follows a project review for closed height, stability and remaining capacity.
Load handling
Standard forks or attachmentThe material, contact surface, dimensions, opening range and hydraulics determine the attachment direction.
TECHNICAL SPECIFICATIONS
CPD35 decision data.
Confirmed model differences and comparable catalogue reference values are separated below. Reference values still require factory confirmation for the final configuration.
01Capacity & power
Core model, energy system and operating weight.
HideShow details
Capacity & power
Core model, energy system and operating weight.
| Rated capacity | 3,500 kg |
|---|---|
| Load center | 500 mm |
| Power type | Electric |
| Battery options | Lead-acid / lithium-ion |
| System voltage / capacity | Lead-acid: 48/60 V · 100/200 Ah; lithium: 72 V · 180/300/400 Ah |
| Service weight | 4,780 kg |
02Mast & load handling
Standard equipment and lift-height paths.
HideShow details
Mast & load handling
Standard equipment and lift-height paths.
| Mast type | Two-stage standard mastReference · confirm |
|---|---|
| Standard lift height | 3,000 mm |
| Regular optional lift heights | 4,500 / 5,500 / 6,000 mm |
| Project high-mast range | Above 6,000 mm to 10,000 mm, subject to engineering confirmation |
| Closed mast height | 2,080 mm |
| Free lift height | 135 mm |
| Fork size (L × W × T) | 1,070 × 130 × 50 mm |
| Mast tilt, front / rear | 6° / 12°Reference · confirm |
03Dimensions & manoeuvrability
Truck envelope and required working space.
HideShow details
Dimensions & manoeuvrability
Truck envelope and required working space.
| Overall length (excl. forks) | 2,840 mm |
|---|---|
| Overall width | 1,096 mm |
| Turning radius | 2,080 mm |
| Right-angle stacking aisle | 3,655 mm (1,000 × 1,200 pallet) / 3,855 mm (800 × 1,200 pallet) |
| Ground clearance at mast | 88 mm |
04Performance & drive
Reference performance for first-stage comparison.
HideShow details
Performance & drive
Reference performance for first-stage comparison.
| Drive motor rated power | 13.0 kWReference · confirm |
|---|---|
| Travel speed, laden / unladen | 12 / 13 km/h |
| Lift speed, laden / unladen | 250 / 260 mm/s |
| Lowering speed, unladen / laden | 800 / ≥520 mm/sReference · confirm |
| Maximum gradeability | 15% |
05Chassis & supply
Tyres, axle layout and commercial confirmation items.
HideShow details
Chassis & supply
Tyres, axle layout and commercial confirmation items.
| Tyre type | Solid tyres |
|---|---|
| Wheels, front / rear | 2 / 2 |
| Front / rear track | 920 / 898 mm |
| Warranty | 1 year |
| Production scheduling | Confirm per order, configuration and current production plan |
Reference values are identified in the table.
For high-mast or special-attachment work, final residual capacity, closed mast height, attachment weight, hydraulic functions and transport dimensions must be checked before quotation.
02 / SIDE PROFILE
WHAT THE FACTORY NEEDS
Five facts make the next reply more useful.
- 01Material, weight and load dimensions
- 02Required fork height and doorway limit
- 03Worksite, aisle, floor and slope
- 04Daily working hours and charging access
- 05Quantity, country and purchase timing
The model is a starting platform. Final performance is subject to model, mast, attachment and working-condition confirmation.
