CUSTOMIZATION

Start with the load. Build from there.

Tell us what you move, how high it must go and where the forklift will work. We will check the truck, mast and attachment as one configuration.

Configure for my jobBrowse attachments ↓
SunYi electric forklifts shown with log handling attachments

Attachment capability overview · final fitment and remaining capacity require engineering confirmation.

MAST HEIGHT PATH

Required lift height is only half the question.

Closed mast height, overhead clearance, load centre and usable capacity at height must be reviewed together. The bars compare requested height paths; they are not a load chart.

Start a high-rack brief →
3.0m
Standard

Starting configuration for routine handling.

4.5m
Regular option

Confirm closed mast height and load at height.

5.5m
Regular option

Residual capacity becomes a more important check.

6.0m
Regular high mast

Confirm model, stability and doorway limits.

6–10m
Project path

Engineering review required before quotation.

BATTERY DIRECTION

Choose around the working day.

LITHIUM

Flexible charging path

  • Useful where opportunity charging is available
  • Lower routine battery maintenance
  • Confirm daily hours, charger and transport rules
LEAD-ACID

Initial-cost path

  • Familiar and practical for many standard operations
  • Requires charging time and battery maintenance planning
  • Confirm capacity, charger and shift pattern

ATTACHMENT CAPABILITY LIBRARY

Match the tool to the material.

The attachment changes residual capacity, front overhang and hydraulic requirements. Select a handling direction here, then let the factory confirm the final installation.

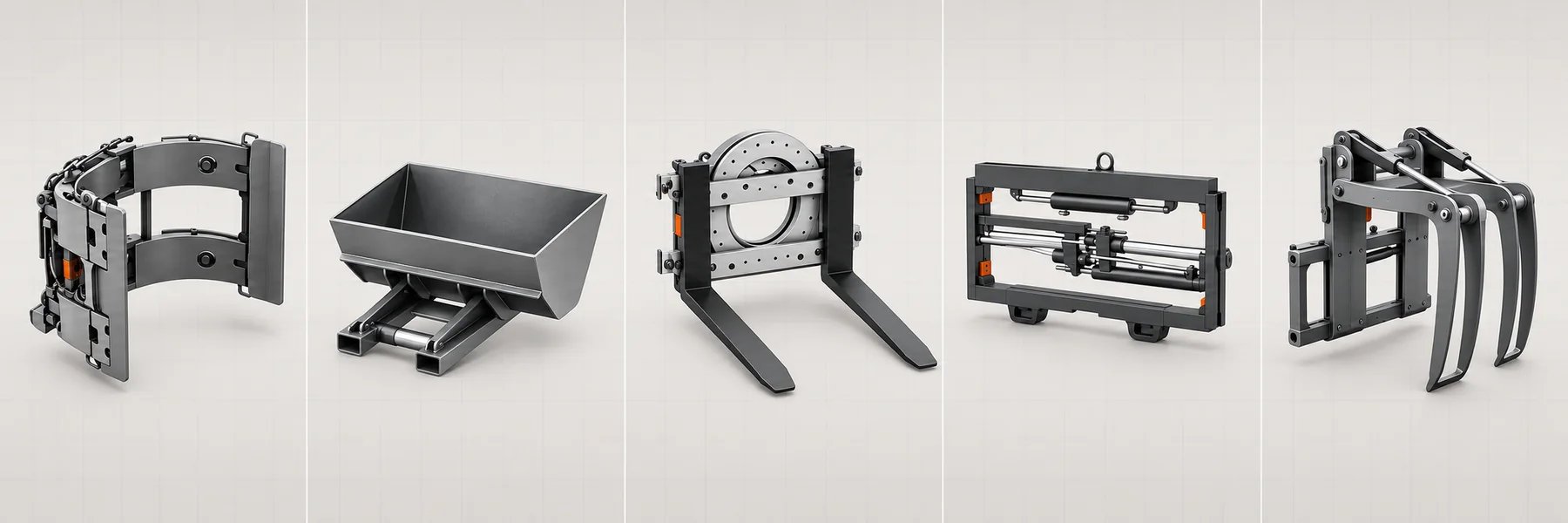

Illustrative overview of a paper roll clamp, bucket, rotator, fork positioner and log grapple
ILLUSTRATIVE CAPABILITY OVERVIEWFrom delicate gripping to bulk and timber handling.

Representative geometry only. Mounting, opening range, hydraulic functions, attachment weight and remaining capacity require engineering confirmation.

Showing 28 attachment directions in 5 work families.

01
WORK FAMILY

General handling

Position, rotate, reach or move palletised and unitised loads.

Confirm before quotationConfirm pallet or load dimensions, fork spacing and required movement.
Standard forksPallets, boxed goods and routine handling.Fork positionerAdjustable fork spacing from the cab.Side shifterLateral positioning for accurate load placement.RotatorRotating forks for dumping and turning loads.Reach fork carriageForward reach for selected handling tasks.Push-pullSlip-sheet handling and load pushing.
02
WORK FAMILY

Clamps

Grip rolls, cartons, bales, bricks, drums, pipes and tyres without standard pallet handling.

Confirm before quotationConfirm material, contact surface, opening range, weight and hydraulic functions.
Carton clampCartons and unitized paper-pack loads.Paper roll clampPaper rolls and cylindrical roll handling.Bale clampBales, foam packs and compressed goods.Brick clampBricks and block bundles.Drum clampDrums and round containers.Pipe clampPipes and tubular bundles.Tyre clampTyres and circular industrial loads.Tobacco carton clampTobacco cartons and wide packaged loads.
05
WORK FAMILY

Special projects

Develop a project-specific front end where standard attachments are not enough.

Confirm before quotationConfirm drawings, movement path, load centre and all hydraulic requirements.
Telescopic jibSuspended loads and extended reach projects.Side-tilting jibProject lifting where side positioning is needed.Load stabilizerAdded support for tall or unstable loads.Tilting forkControlled forward tipping of the load.Foundry clampSpecialized high-duty industrial handling.

HOW A CUSTOM PROJECT STARTS

Four pieces of information are enough for the first discussion.

  1. 01
    Load

    Material type, weight, dimensions and current handling method.

  2. 02
    Height

    Required lifting height and any doorway or ceiling limits.

  3. 03
    Site

    Indoor, outdoor, floor condition, slope and working space.

  4. 04
    Usage

    Daily working hours, charging conditions and expected quantity.

HAVE A NON-STANDARD JOB?

Build the project brief before choosing the final model.

Open configurator
